Thermoforming PET Sheet
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
| Model Number | PET Sheet |

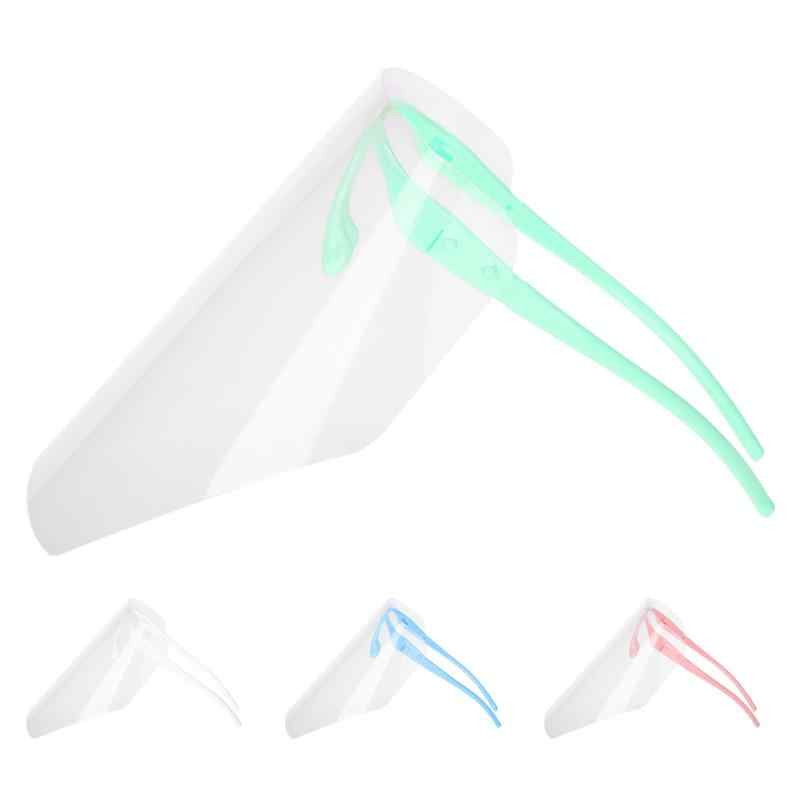

Thermoforming PET Sheet 0.5mm Anti Fog Clear PET Sheet For Face Shield
Product Description
PET sheet is a thermoplastic sheet made by Polyethylene terephthalate resin. Thermoforming PET sheet offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity (dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity (kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption (%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min) (kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min) (kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min) (%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min) (%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min) (kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min) (kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact (g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart (g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃ (J/m) | 98 | ASTM D256 |
| Rockwell Hardness (℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi) (℃) | 77 | ASTM D648 |
Application For PET Sheet
Thermoforming PET sheets are widely used for packaging consumer goods, electrical accessories, and medical products. In packaging applications, Thermoforming PET sheet acts as excellent barriers to acids and strong oxidizers.
- Packaging
- Folding box
- Vacuum therm-forming
- Blister Pack
