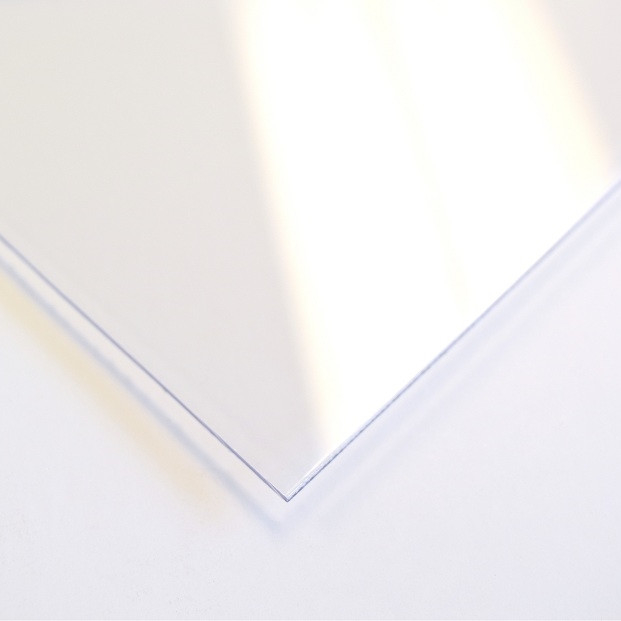

Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm
  • Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm
  • Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm
  • Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm
  • Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm

Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm

Place of Origin Jiangsu, China
Brand Name Jiaou
Certification FDA, GRS, Reach, RoHS, ISO9001
Model Number PET Sheet
Product Details
Product Name:
PET Sheet Film High Quality Plastic Transparent PET Clear Sheet
Other Product Name:
PET Sheet
Material:
PET
Thickness:
0.18mm - 2mm
Size:
300mm -1280mm
Application:
For Packaging Vacuum-formed,sale Displays, Covers And Machinery Guards
Feature:
Eco-Friendly
Sample:
Available
Packing:
Pallets
Port:
Shanghai,Lianyungang,Zhangjiagang
Highlight:

Plastic PET Sheet Film

,

PET Sheet Film Transparent

,

PET Clear Sheet 2mm

Payment & Shipping Terms
Minimum Order Quantity
1000 kilograms
Price
Negociated
Packaging Details
Sample: A4 size rigid PET with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal
Delivery Time
To Be Negotiated
Payment Terms
T/T
Supply Ability
100 Tons Per Day
Product Description

PET Sheet Film High Quality Plastic Transparent PET Clear Sheet



Product Description



PET sheet film is a thermoplastic sheet made of Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws, and compound curves without worrying about durability. PET is easily formed, die-cut, and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.







  • Outstanding thermoforming characteristics, particularly in deep draw applications
  • Good impact resistance
  • Allows for rigid thermoforming cycle times
  • FDA compliant grades available
  • Die cuts/punches easily
  • Low forming temperature
  • Printable
  • Chemical resistant
  • Self-extinguishing







 Technical Data Sheet

General Properties Value Test Method Unit
Density 1.36 ISO 1183 g/cm³
Water Absorption 0.25 ISO 62 %
Flammability HB / HB UL 94 /
Mechanical Properties
Yield Stress 85 ASTM D638 MPa
Elongation @ Break 15 ASTM D638 %
Tensile Modulus of Elasticity 3000 ASTM D638 MPa
Notched Impact Strength (Charpy) 2 DIN EN ISO 179 kJ/m2
Ball Indentation Hardness 170 DIN EN ISO 2039-1 MPa
Shore Hardness 84 DIN EN ISO 868 Scale D
Thermal Properties
Melting Temperature 255 ISO 11357-3 °C
Thermal Conductivity 0.28 DIN 52612-1 W / (M*K)
Thermal Capacity 1.1 DIN 52612 kJ / (kg*K)
Coefficient of Linear Thermal Expansion 60 DIN 53752 10-6K-1
Service Temperature, Long Term -20 up to +115 Average °C
Service Temperature, Short Term (Max.) 180 Average °C
Heat Deflection Temperature 80 ASTM D648 °C
Electrical Properties
Dielectric Constant 3.4 IEC 60250 /
Dielectric Dissipation Factor (50Hz) 0.001 IEC 60250 /
Volume Resistivity 10 18 IEC 60093 Ω*cm
Surface Resistivity 10 16 IEC 60093
Comparative Tracking Index 600 IEC 60112
Dielectric Strength 20 ASTM D149 kV/mm









Application For PET Sheet



  • Disposable food containers and trays
  • Sign and graphic holders
  • Insert trays
  • Folding boxes
  • Advertising plastic signages





 Package

Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm 0Plastic PET Sheet Film Transparent PET Clear Sheet 0.18mm-2mm 1









FAQ

Q1. Are you a factory or trade company?

A:  We are a professional manufacturer with 15 years' experience, if you have interests welcome to visit our factory.



Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.



Q3. How about the lead time?

A: Normal sample supply it at once. Special samples need 3 days. mass production generally 5-10 working days after receiving your initial payment.



Q4. Do you have any MOQ limit?

A: Normal Only 1000kgs, Special colors about 2000kg.



Q5. What are your terms of payment?

A:  30% T/T in advance, balance before shipment. We accept L/C at Sight.
