| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
| Model Number | PETG Sheet |

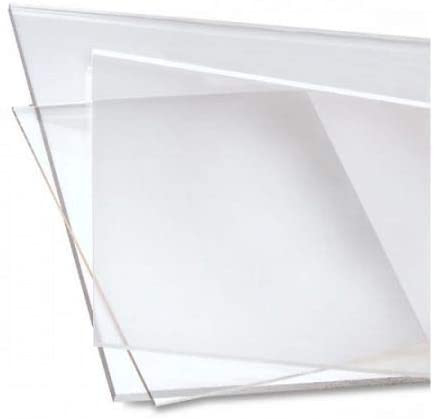

Clear PETG Sheet High Transparent PETG Sheet For Plastic Display Case
Product Description
Jiaou New Materials Co.,LTD now offers PETG flat sheets. a clear transparent thermoplastic flat PETG sheet (Polyester) than can be used as an alternative to polycarbonate, solid acrylic and PVC sheets. It offers excellent strength to weight ratio, outstanding optical clarity, superior chemical resistance, durability, fire resistance and is 100% recyclable. Its key benefit is the exceptional ease of work ability it offers in print and display applications.
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point of purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clearity of PETG approchies that of Acrylic and Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Table top displays
• Table tents
• Product displays
• Trays
