| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
| Model Number | PETG Sheet |

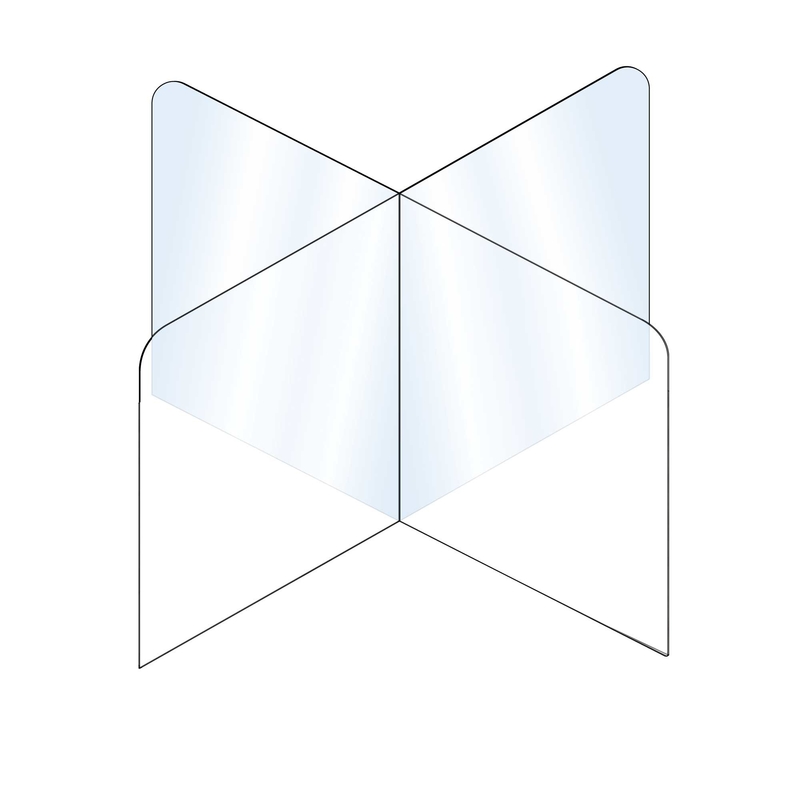

Transparent PETG Table Shield Using For Isolation And Protection
Product Description
Jiaou New Materials Co., Ltd. now provides PETG flat sheets. A clear thermoplastic flat PETG (polyester) ratio is available as an alternative to polycarbonate, solid acrylic, and PVC sheets. It has an excellent strength-to-weight ratio, excellent optical clarity, excellent chemical resistance, durability, fire resistance, and is 100% recyclable. Its main advantage is that it offers exceptional ease of processing in printing and display applications.
| Item | Typical Value |
| Product name | Isolation Protection Clear PETG Sheet 2mm Table Shield |
| Width | 300mm - 2100mm |
| Thickness | 0.18mm - 7mm |
| Size | Custom |
| Material | PETG |
| Color | Transparent, Custom |
| Application | Table Shield |
| Surface | Smooth |
| Feature | Rigid |
| Sample | Available |
Product Features
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point of purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clearity of PETG approchies that of Acrylic and Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Table tents
• Product displays
• Trays
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years' experience if you have interest welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal Only 1000kg, Special colors about 5000kg.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
