RPET Plastic Sheet
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
| Model Number | RPET Sheet |

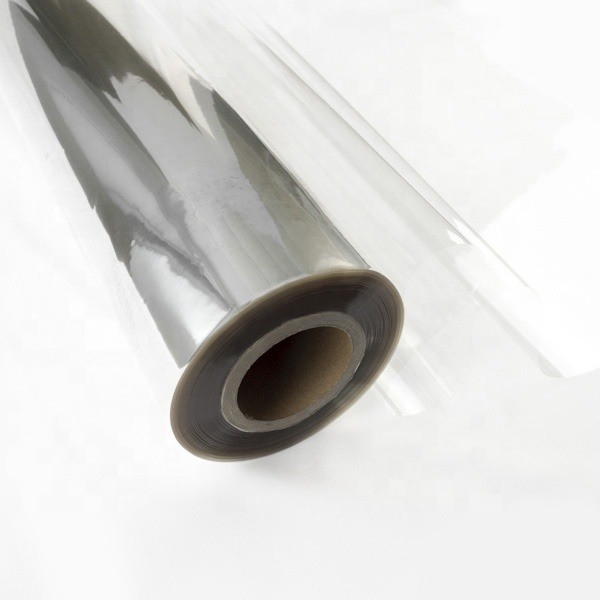

RPET Plastic Sheet Clear Plastic Food Grade Lunch Box
Product Description
Clear RPET plastic sheet (polyester) can be used as a replacement for polycarbonate, solid acrylic, and PVC sheets. It has an excellent strength-to-weight ratio, excellent optical transparency, excellent chemical resistance, and durability, and is 100% recyclable.
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| General Properties | Value | Test Method | Unit |
| Density | 1.36 | ISO 1183 | g/cm³ |
| Water Absorption | 0.25 | ISO 62 | % |
| Flammability | HB / HB | UL 94 | / |
| Mechanical Properties | |||
| Yield Stress | 85 | ASTM D638 | MPa |
| Elongation @ Break | 15 | ASTM D638 | % |
| Tensile Modulus of Elasticity | 3000 | ASTM D638 | MPa |
| Notched Impact Strength (Charpy) | 2 | DIN EN ISO 179 | kJ/m2 |
| Ball Indentation Hardness | 170 | DIN EN ISO 2039-1 | MPa |
| Shore Hardness | 84 | DIN EN ISO 868 | Scale D |
| Thermal Properties | |||
| Melting Temperature | 255 | ISO 11357-3 | °C |
| Thermal Conductivity | 0.28 | DIN 52612-1 | W / (M*K) |
| Thermal Capacity | 1.1 | DIN 52612 | kJ / (kg*K) |
| Coefficient of Linear Thermal Expansion | 60 | DIN 53752 | 10-6K-1 |
| Service Temperature, Long Term | -20 up to +115 | Average | °C |
| Service Temperature, Short Term (Max.) | 180 | Average | °C |
| Heat Deflection Temperature | 80 | ASTM D648 | °C |
| Electrical Properties | |||
| Dielectric Constant | 3.4 | IEC 60250 | / |
| Dielectric Dissipation Factor (50Hz) | 0.001 | IEC 60250 | / |
| Volume Resistivity | 10 18 | IEC 60093 | Ω*cm |
| Surface Resistivity | 10 16 | IEC 60093 | Ω |
| Comparative Tracking Index | 600 | IEC 60112 | |
| Dielectric Strength | 20 | ASTM D149 | kV/mm |
Application For PET Sheet
• Food packaging trays
• Blister and clamshells
• Insert trays
• Folding boxes
• Product displays
Package
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years of experience. If you have interests, welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Unique samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal Only 500kgs, Special colors about 2000kg.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
