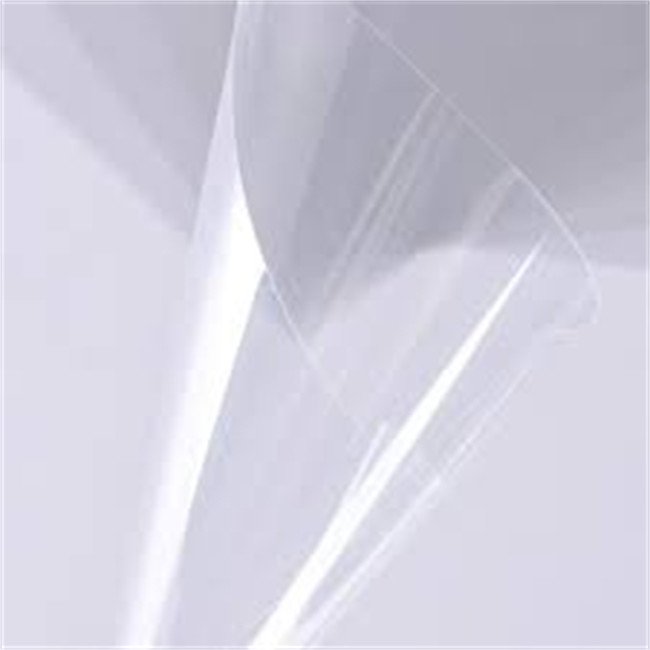

Clear PET Sheet Roll Film
Product Description
PET sheet is a thermoplastic sheet made of Polyethylene terephthalate resin. PET offers the capability to produce complex shapes, precise details, deep draws, and compound curves without worrying about durability. PET is easily formed, die-cut, and punched. It also brings increased design freedom and lower fabrication costs.
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Allows for rigid thermoforming cycle times
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| General Properties | Value | Test Method | Unit |
| Density | 1.36 | ISO 1183 | g/cm³ |
| Water Absorption | 0.25 | ISO 62 | % |
| Flammability | HB / HB | UL 94 | / |
| Mechanical Properties | |||
| Yield Stress | 85 | ASTM D638 | MPa |
| Elongation @ Break | 15 | ASTM D638 | % |
| Tensile Modulus of Elasticity | 3000 | ASTM D638 | MPa |
| Notched Impact Strength (Charpy) | 2 | DIN EN ISO 179 | kJ/m2 |
| Ball Indentation Hardness | 170 | DIN EN ISO 2039-1 | MPa |
| Shore Hardness | 84 | DIN EN ISO 868 | Scale D |
| Thermal Properties | |||
| Melting Temperature | 255 | ISO 11357-3 | °C |
| Thermal Conductivity | 0.28 | DIN 52612-1 | W / (M*K) |
| Thermal Capacity | 1.1 | DIN 52612 | kJ / (kg*K) |
| Coefficient of Linear Thermal Expansion | 60 | DIN 53752 | 10-6K-1 |
| Service Temperature, Long Term | -20 up to +115 | Average | °C |
| Service Temperature, Short Term (Max.) | 180 | Average | °C |
| Heat Deflection Temperature | 80 | ASTM D648 | °C |
| Electrical Properties | |||
| Dielectric Constant | 3.4 | IEC 60250 | / |
| Dielectric Dissipation Factor (50Hz) | 0.001 | IEC 60250 | / |
| Volume Resistivity | 10 18 | IEC 60093 | Ω*cm |
| Surface Resistivity | 10 16 | IEC 60093 | Ω |
| Comparative Tracking Index | 600 | IEC 60112 | |
| Dielectric Strength | 20 | ASTM D149 | kV/mm |
Application For PET Sheet
PET plastic sheet roll is widely used for packaging consumer goods, electrical accessories, and folding boxes. In packaging applications, PET sheet rolls act as excellent barriers to acids and strong oxidizers.
-Packaging
-Folding box
-Vacuum therm-forming
-Blister Pack
Package & Delivery
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years' experience, if you have interests welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Unique samples need 3 days. Bulk production generally takes 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limit?
A: Normal Only 1000kgs, Special colors about 5000kgs.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
