APET Plastic Sheet
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, Reach, RoHS, ISO9001 |

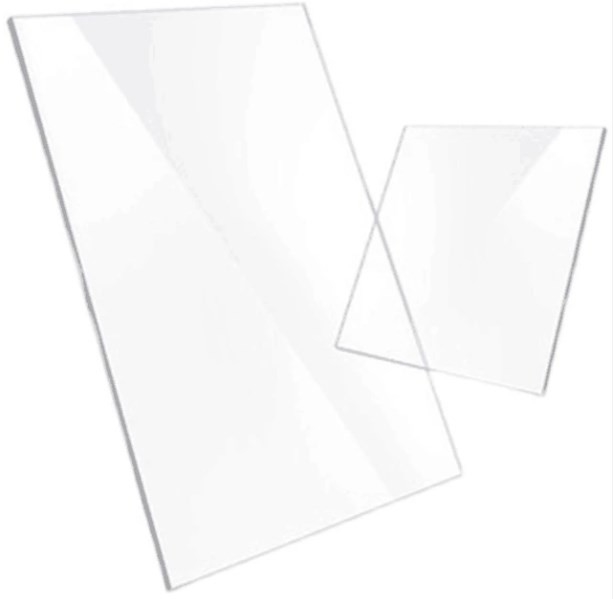

Hot Sale Transparent PET Sheet
Product Description
PET Sheet Film is a thermoplastic sheet made by Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.
•Outstanding thermoforming characteristics, particularly in deep draw applications
•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity (dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity (kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption (%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min) (kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min) (kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min) (%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min) (%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min) (kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min) (kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact (g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart (g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃ (J/m) | 98 | ASTM D256 |
| Rockwell Hardness (℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi) (℃) | 77 | ASTM D648 |
Application For PETG Sheet
PET sheet are widely used for packaging consumer goods, electrical Accessories, and medical products. In packaging applications, PET sheet act as Excellent barriers to acids and strong oxidizers.
Application
-Packaging
-Folding box
-Vacuum therm-forming
-Blister Pack
Package
Why Choose Us?
FAQ
Q1. Are you factory or trade company?
A: We are professional manufacturer of 15 years experience, if you have interests welcome to visit our factory.
Q2. Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free, but charge by freight collect.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples needs 3 days. mass production generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limit?
A: Normal Only 500kgs, Special colors about 2000kg.
A: 30% T/T in advance , balance before shippment. We accept L/C at Sight .
A: Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality.
