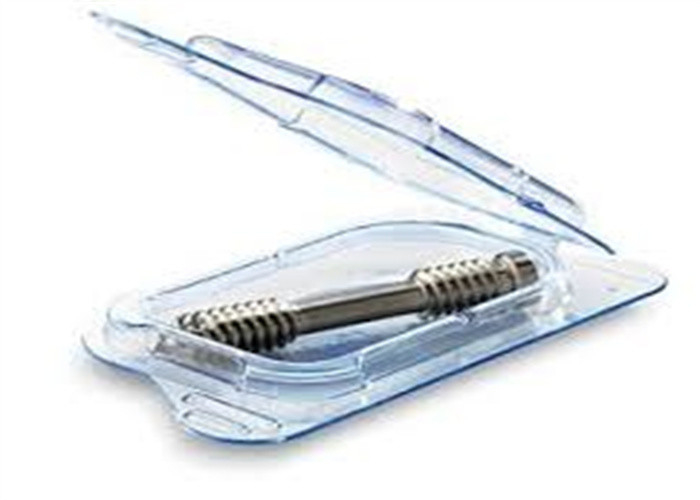

Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
  • Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging
Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging

Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging

Place of Origin Jiangsu, China
Brand Name Jiaou
Certification FDA, Reach, RoHS, ISO900
Model Number PETG Sheet
Product Details
Product Name:
PETG Sheet For Medical Packaging
Material:
PETG
Thickness:
0.2mm - 2mm - 6mm
Width:
200mm -1200mm
Size:
Custom Size
Color:
Customized
Application:
Medical Device Packaging
Surface:
Smooth,Glossy
Feature:
Biodegardable
Raw Material:
100% Virgin Raw Material
Highlight:

Medical Grade Polylactic Acid Sheet

,

Polylactic Acid Sheet Biodegradable

,

transparent pla Medical Device Packaging

Payment & Shipping Terms
Minimum Order Quantity
1000 kilograms
Price
Negociated
Packaging Details
Standard Export Pallet
Delivery Time
To Be Negotiated
Payment Terms
T/T
Supply Ability
30 Tons Per Day
Product Description

Clear PETG Sheet For Medical Packaging



Product Description



Clear PETG Sheet is a rigid sheet, offering excellent clarity and impact resistance, allowing for various applications. PETG is easily vacuum-formed, printed, bonded, and polished. Because of its strength and glass-like clarity, it is often used in the fabrication of light boxes and protective covers where visibility is the key.





Item Typical Value
Product name Clear PETG Sheet Blister Packaging
Width 300mm - 2100mm
Thickness 0.18mm - 7mm
Size Custom
Material PETG
Color Transparent, Custom
Application Blister Packaging
Surface Smooth
Feature Rigid
Sample Available





  • PETG is easy to fabricate and thermoform without pre-drying, hence faster cycle times and cost savings can be achieved. Thermoforming and bending can be done with great accuracy and with maintained visual clarity.
  • Anti-fog PETG sheet and roll, coated with environmentally-friendly nanometer antifogging agent, one-side clean, no crystal point, water ripple, high light transmittance, water vapor is not easy to condense on the sheet surface, keep clear and bright.
  • Products are widely used in medical protection, face shield, lens, and other protection.
  • Jiaou® PETG Plastic Sheets are a versatile co-polyester used for a wide range of applications that require exceptional clarity and mechanical properties.
  • Jiaou® PETG offers designers a high degree of freedom for realizing intricate transparent shapes and fast becoming an environmentally viable alternative to clear PVC.
  • Jiaou® PETG sheet is an ideal product for the vacuum forming process for point-of-sale parts due to not having to pre-dry the material. Jiaou®PETG has the ability to reposition and reform, and the ability to down gauge some individual parts due to a higher impact strength than that of PMMA.









Technical Data Sheet

Item Typical Value Testing Method
Intrinsic Viscosity(dL/g) 0.750+/-0.015 Ubbelodhe viscometer
Specific Gravity(kg/cm³) 1.27 ASTM D792
Moisture Absorption(%) 0.15 ASTM D570
Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) 496 ASTM D638
Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) 281 ASTM D638
Elongation@Yield 50mm/min( 2inch/min)(%) 3.7 ASTM D638
Elongation@Break 50mm/min(2 inch/min)(%) 136 ASTM D638
Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) 620 ASTM D790
Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) 20800 ASTM D790
Low temperature falling dart impact(g) 791 ASTM D358
Atmospheric temperature falling dart(g) 1701 ASTM D358
Lzod Impact Strength Notched@23 ℃(J/m) 98 ASTM D256
Rockwell Hardness(℃) 106 R-scale
Heat Distortion Temperature 0.45Mpa(66 psi)(℃) 77 ASTM D648

















Application For Clear PETG Sheet



  1. Used for the display box, POP/POS display stands
  2. Used for medical packaging
  3. Used for thermoforming
  4. Used for machine guards









Package

Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging 0Medical Grade Clear PETG Sheet Transparent Plastic Sheet For Medical Device Packaging 1





















FAQ

Q1. Are you a factory or trade company?

A: We are a professional manufacturer with 15 years of experience. If you have interests welcome to visit our factory.



Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.



Q3. How about the lead time?

A: Normal sample supply it at once. Unique samples need 3 days. mass production generally 5-10 working days after receiving your initial payment.



Q4. Do you have any MOQ limits?

A: Normal Only 1000kgs, Special colors about 5000kgs.



Q5. What are your terms of payment?

A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
