PETG Thermoform Plastic Sheets
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
| Model Number | PETG Sheet |

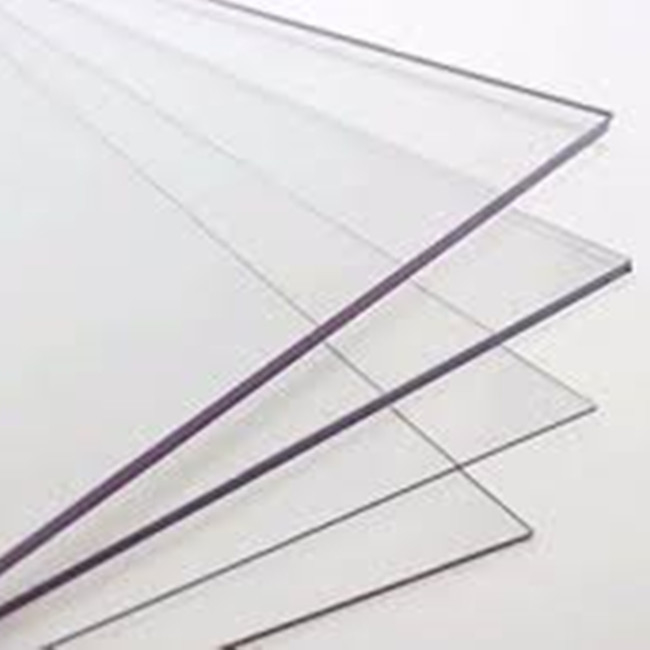

PETG Thermoform Plastic Sheets 0.25mm - 8mm PETG Sheet
Product Description
Our Clear PETG Sheet is a type of transparent glycol-modified PET thermoplastic sheet that is perfect for a wide range of applications. It is made of glycol-modified polyester, making it highly heat and chemical-resistant. This sheet has a smooth surface and is highly durable, providing superior performance in both indoor and outdoor applications. The color of this sheet is clear, providing excellent visibility and clarity. It has excellent dimensional stability and is easy to machine, form, and fabricate. This sheet is suitable for a wide range of applications, such as food packaging, medical equipment, and industrial applications. It is also resistant to weathering, UV degradation, and most chemicals. Our Clear PETG Sheet is the perfect choice for any application where superior heat and chemical resistance is required.
• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point-of-purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clarity of PETG approaches that of Acrylic and the Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Table top displays
• Table tents
• Product displays
• Trays
Package & Delivery
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years of experience. If you have interests, welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limits?
A: Normal only 1000kgs, Special colors about 5000kgs.
A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
