| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Model Number | None |

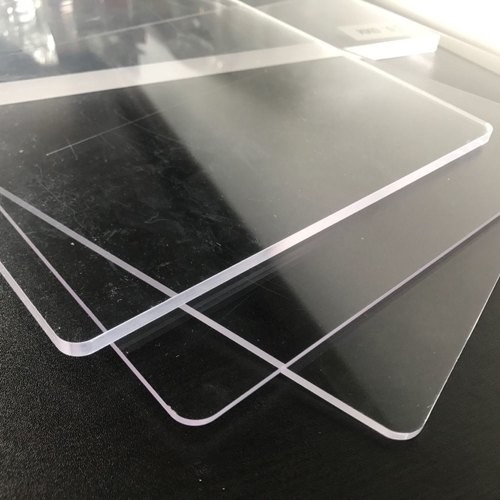

Clear Plastic PETG Sheet
Product Description
Clear PETG Sheet is a thermoplastic sheet made of polyethylene terephthalate glycol (PETG). It is characterized by its high clarity, smooth surface, lightweight, and excellent moisture resistance. Being clear and transparent, this PETG sheet is ideal for a variety of applications, including signs, displays, and other product packaging. It is available in a variety of thicknesses and sizes to accommodate different requirements. With its high quality, Clear PETG Sheet offers users a cost-effective and reliable alternative to acrylic and polycarbonate. It is also widely used in various industries, especially in applications where clarity, impact resistance, and stability are required.
•Outstanding thermoforming characteristics, particularly in deep draw applications
•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•FDA compliant grades available
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing
| Item | Typical Value | Testing Method |
| Intrinsic Viscosity(dL/g) | 0.750+/-0.015 | Ubbelodhe viscometer |
| Specific Gravity(kg/cm³) | 1.27 | ASTM D792 |
| Moisture Absorption(%) | 0.15 | ASTM D570 |
| Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 | ASTM D638 |
| Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 | ASTM D638 |
| Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 | ASTM D638 |
| Elongation@Break 50mm/min(2 inch/min)(%) | 136 | ASTM D638 |
| Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 | ASTM D790 |
| Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 | ASTM D790 |
| Low temperature falling dart impact(g) | 791 | ASTM D358 |
| Atmospheric temperature falling dart(g) | 1701 | ASTM D358 |
| Lzod Impact Strength Notched@23 ℃(J/m) | 98 | ASTM D256 |
| Rockwell Hardness(℃) | 106 | R-scale |
| Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 | ASTM D648 |
Application For PETG Sheet
PETG is used as a midrange-priced product between Acrylic and Polycarbonate. The clarity of PETG approaches that of Acrylic and impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.
• Sign and graphic holders
• Point of purchase displays
• Merchandisers
• Tabletop displays
• Product displays
• Trays
Why Choose Us?
FAQ
Q1. Are you a factory or trade company?
A: We are a professional manufacturer with 15 years' experience, if you are interested welcome to visit our factory.
Q2. Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free, but charge by freight collection.
Q3. How about the lead time?
A: Normal sample supply it at once. Special samples need 3 days. mass production generally 5-10 working days after receiving your initial payment.
Q4. Do you have any MOQ limit?
A: Normal Only 500kgs, Special colors about 2000kg.
A: 30% T/T in advance, balance before shippment. We accept L/C at sight.
