| Place of Origin | Jiangsu, China |
| Brand Name | Jiaou |
| Certification | FDA, GRS, Reach, RoHS, ISO9001 |
|

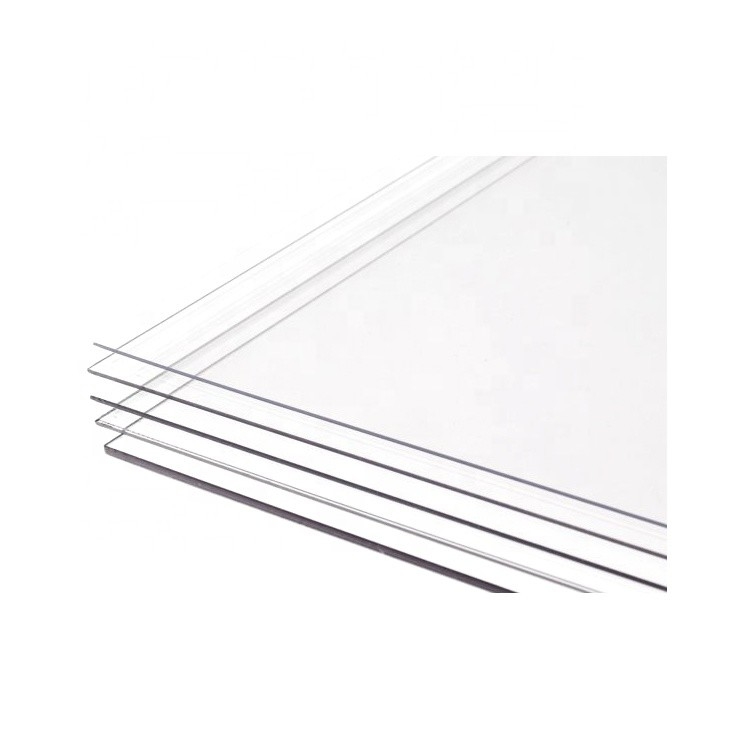

Product Name: Clear PETG Sheet
|
Material: PETG
|
|
|
Size: ≤2050mm*3050mm
|
thickness: 0.2mm-8mm
|
|
|
Color: Transparent/opaque
|
Packing: Roll/sheet
|
|
|
Applicable Occasions: Eco-friendly plastic APET/PETG sheets.High clarity and impact resistance, sterilized available,yellow resistant anti-fog,anti-UV, anti-static and other characteristics.Widely used as POP display,furniture,store auxiliary, electronics and medical packaging
|
|
|
|
Item
|
Typical Value
|
Test Method
|
|
Intrinsic Viscosity(dL/g)
|
0.750+/-0.015
|
Ubbelodhe viscometer
|
|
Specific Gravity(kg/cm³)
|
1.27
|
ASTM D792
|
|
Moisture Absorption(%)
|
0.15
|
ASTM D570
|
|
Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²)
|
496
|
ASTM D638
|
|
Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²)
|
281
|
ASTM D638
|
|
Elongation@Yield 50mm/min( 2inch/min)(%)
|
3.7
|
ASTM D638
|
|
Elongation@Break 50mm/min(2 inch/min)(%)
|
136
|
ASTM D638
|
|
Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²)
|
620
|
ASTM D790
|
|
Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²)
|
20800
|
ASTM D790
|
|
Low temperature falling dart impact(g)
|
791
|
ASTM D358
|
|
Atmospheric temperature falling dart(g)
|
1701
|
ASTM D358
|
|
Lzod Impact Strength Notched@23 ℃(J/m)
|
98
|
ASTM D256
|
|
Rockwell Hardness(℃)
|
106
|
R-scale
|
|
Heat Distortion Temperature 0.45Mpa(66 psi)(℃)
|
77
|
ASTM D648
|
