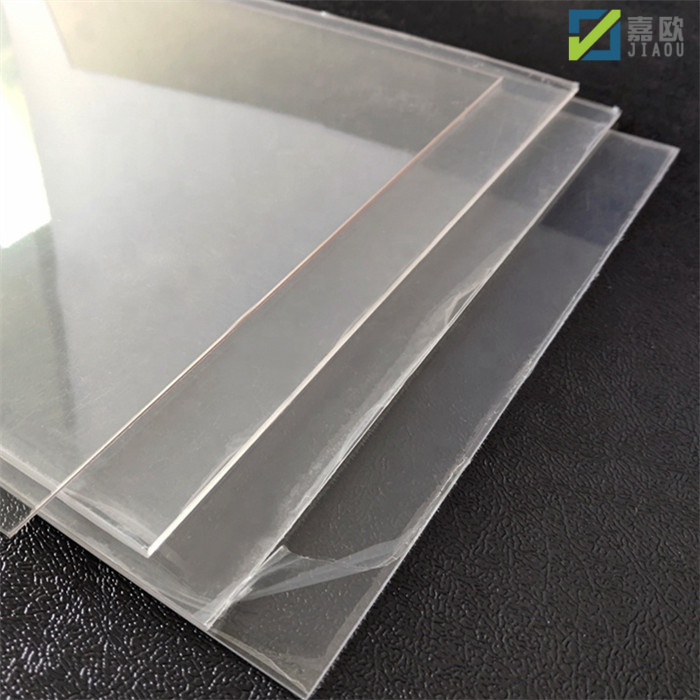

Crystal Clear PETG Sheet for Transparent Packaging
  • Crystal Clear PETG Sheet for Transparent Packaging
  • Crystal Clear PETG Sheet for Transparent Packaging
  • Crystal Clear PETG Sheet for Transparent Packaging
  • Crystal Clear PETG Sheet for Transparent Packaging
  • Crystal Clear PETG Sheet for Transparent Packaging
Crystal Clear PETG Sheet for Transparent Packaging

Crystal Clear PETG Sheet for Transparent Packaging

Place of Origin Jiangsu, China
Brand Name Jiaou
Certification FDA, GRS, Reach, RoHS, ISO9001
Model Number PETG Sheet
Product Details
Product Name:
Clear PETG Sheet Custom Size
Material:
PETG
Thickness:
0.18-7mm
Size:
2440mm
Other Product Name:
PETG Sheet
Origin:
China
Color:
Transparent
Raw Material:
PETG Resin
Application:
For Sale Displays, Sneeze Guard, Machinery Guards
Feature:
High Gloss
Sample:
Available
Packing:
Pallets
Certificate:
ISO
Port:
Shanghai,Lianyungang,Zhangjiagang
Highlight:

clear PETG sheet for packaging

,

transparent PETG sheet material

,

PETG sheet for transparent packaging

Payment & Shipping Terms
Minimum Order Quantity
1000 kilograms
Price
Negociated
Packaging Details
Sample: A4 size rigid PETG with PP bag in box Sheet packing: 30kg per bag or as your requirement Pallets packing: 500- 2000kg per wooden pallet Container loading: 20 tons as normal
Delivery Time
7 Work Days
Payment Terms
T/T
Supply Ability
100 Tons Peer Day
Product Description

Crystal Clear PETG Sheet for Transparent Packaging


Product Description


Our PETG sheet delivers exceptional optical clarity with over 92% light transmittance, making it the ideal choice for premium blister packaging, display boxes, and transparent covers. Manufactured from food-grade, BPA-free material, it complies with FDA standards for direct food contact. With impact strength 15–20 times higher than acrylic, these rigid sheets provide outstanding durability while maintaining a high-gloss surface finish. Thickness options range from 0.18mm to 7.0mm to suit diverse thermoforming and fabrication needs.




Item Typical Value
Product name Clear PETG Sheet
Width 300mm - 2100mm
Thickness 0.18mm - 7mm
Size Custom
Material PETG
Color Transparent, Custom
Application Sneeze Gurads
Surface Smooth
Feature Rigid
Sample Available



• Outstanding thermoforming characteristics, particularly in deep draw applications
• Good impact resistance
• Less brittle than acrylic
• Resistant to common cleaners used on point of purchase displays
• Allows for rigid thermoforming cycle times
• FDA compliant grades available
• Impact strength greater than acrylic and approaches polycarbonate
• 86% light transparency compared to 87% for polycarbonate and 92% for acrylic
• Die cuts/punches easily
• Low forming temperature
• Printable
• Chemical resistant
• Self-extinguishing




Technical Data Sheet

Item Typical Value Testing Method
Intrinsic Viscosity(dL/g) 0.750+/-0.015 Ubbelodhe viscometer
Specific Gravity(kg/cm³) 1.27 ASTM D792
Moisture Absorption(%) 0.15 ASTM D570
Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) 496 ASTM D638
Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) 281 ASTM D638
Elongation@Yield 50mm/min( 2inch/min)(%) 3.7 ASTM D638
Elongation@Break 50mm/min(2 inch/min)(%) 136 ASTM D638
Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) 620 ASTM D790
Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) 20800 ASTM D790
Low temperature falling dart impact(g) 791 ASTM D358
Atmospheric temperature falling dart(g) 1701 ASTM D358
Lzod Impact Strength Notched@23 ℃(J/m) 98 ASTM D256
Rockwell Hardness(℃) 106 R-scale
Heat Distortion Temperature 0.45Mpa(66 psi)(℃) 77 ASTM D648





Application For PETG Sheet


PETG is used as a Midrange priced product between Acrylic and Polycarbonate. The clearity of PETG approchies that of Acrylic and Impact Resistance of Polycarbonate. Also is used in Signing, Glazing, POP Displays, etc.


  • Corporate signage
  • Point of sale
  • Glazing
  • Machine guards
  • Thermoformed containers & covers
  • Fabricated products







Package


Crystal Clear PETG Sheet for Transparent Packaging 0





FAQ

Q1. Are you a factory or trade company?

A: We are a professional manufacturer with 15 years' experience. If you have interests, welcome to visit our factory.


Q2. Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free, but charge by freight collection.


Q3. How about the lead time?

A: Normal sample supply it at once. Special samples need 3 days. mass production is generally 5-10 working days after receiving your initial payment.


Q4. Do you have any MOQ limits?

A: Normal Only 1000kgs, Special colors about 2000kg.


Q5. What are your terms of payment?

A: 30% T/T in advance, balance before shipment. We accept L/C at Sight.
